AFR1500,AFR2000 Filter & Regulator

AFR1500,AFR2000 Filter & Regulator


1. Product Feature

1) The structure is delicate and compact, which is convenient for installation and application.

2) The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3) The pressure loss is low and the efficiency of water separating is high.

4) In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

2. Symbol

Symbol of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination

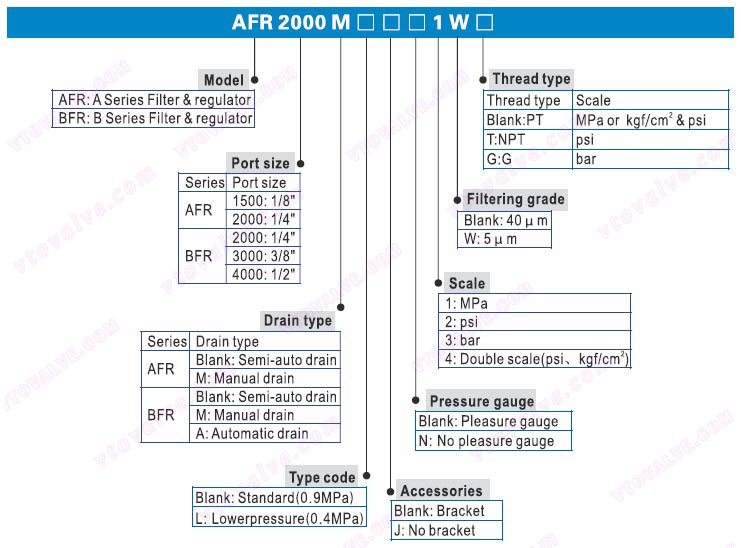

3. Ordering Code

Ordering Code of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination

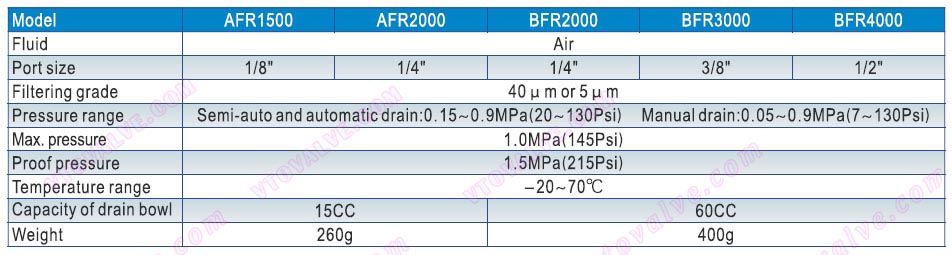

4. Specification

Specification of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination

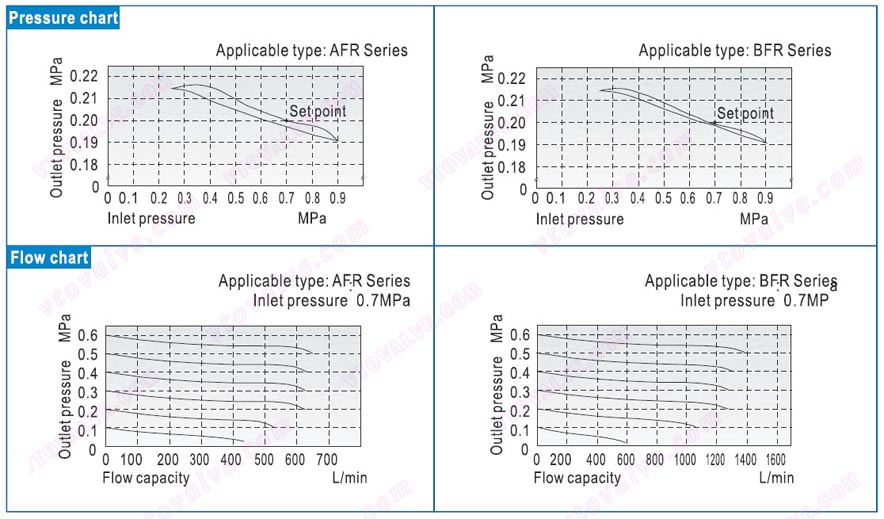

5. Pressure and Feature of Flow

Pressure and Feature of Flow of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination

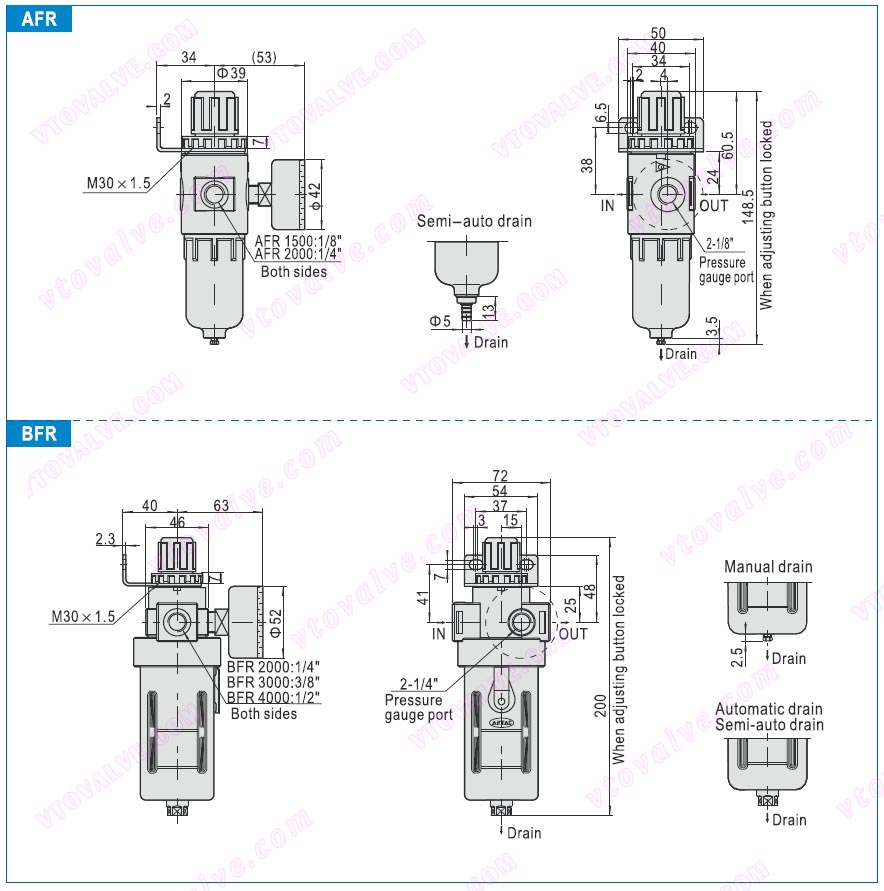

6. Dimensions

Dimensions of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination

7. Inner Structure and Materials of Main Parts

Inner Structure of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination

8. Selection of Drain Mode

Selection of Drain Mode of AFR1500,AFR2000,BFR2000,BFR3000,BFR4000 F.R.L combination
