BF2000,BF3000,BF4000 Air Filter

BF2000,BF3000,BF4000 Air Filter


1. Product Feature

AF Series

1) The structure is delicate and compact.

2) The pressure loss is low and the efficiency of water separating is high.

3) The filter precision includes 5μm and 40μm (optional).

BF Series

1) The pressure loss is low and the efficiency of water separating is high.

2) The bowl has high-strength plastic shields outside, which is more safe and reliable to use.

3) The filter precision includes 5μm and 40μm (optional).

2. Symbol

Symbol of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination

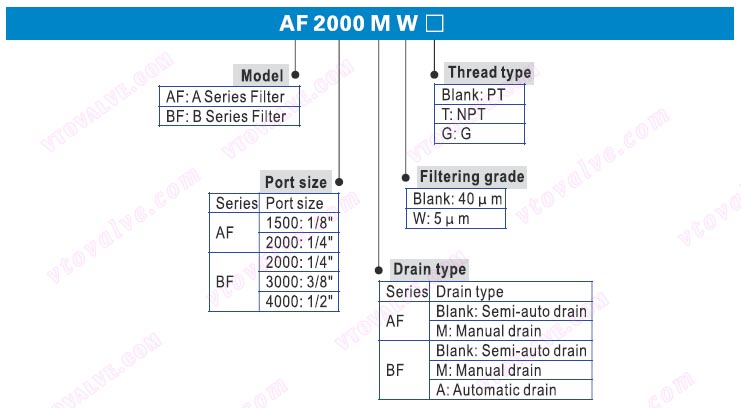

3. Ordering Code

Ordering Code of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination

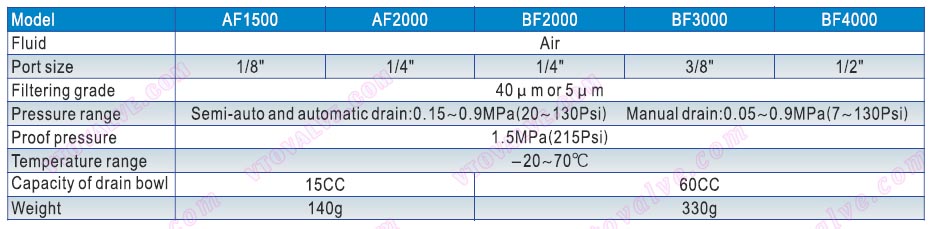

4. Specification

Specification of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination

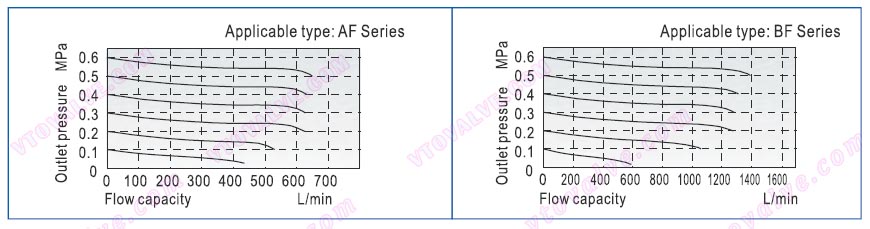

5. Flow Chart

Pressure and Feature of Flow of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination

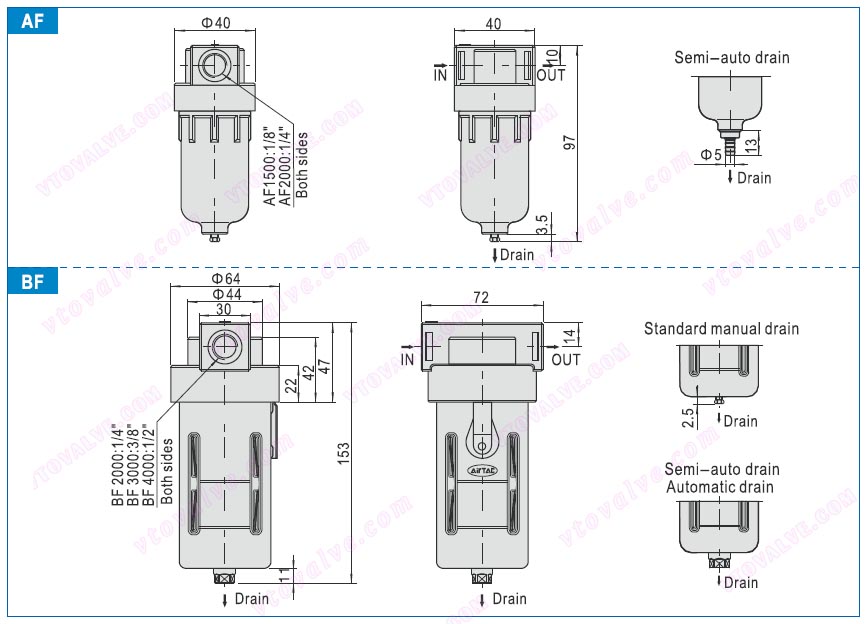

6. Dimensions

Dimensions of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination

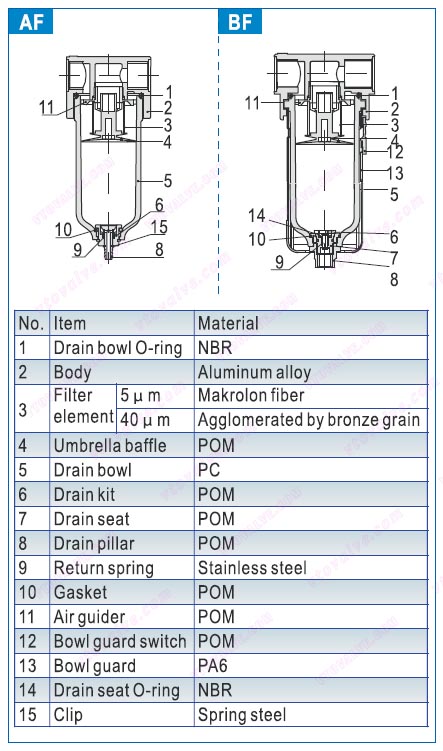

7. Inner Structure and Materials of Main Parts

Inner Structure of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination

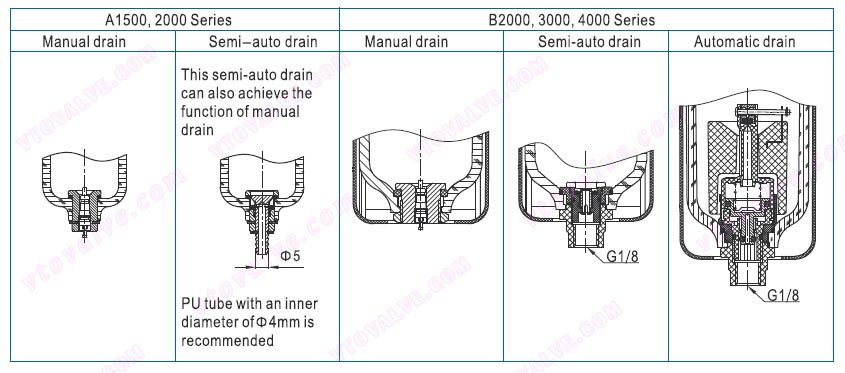

8. Selection of Drain Mode

Selection of Drain Mode of AF1500,AF2000,BF2000,BF3000,BF4000 F.R.L combination
