BL2000,BL3000,BL4000 Lubricator

BL2000,BL3000,BL4000 Lubricator


1. Product Feature

1) The structure is delicate and compact.

2) The quantity of oil dripping can be directly observed through transparent inspection sheet.

3) BL has high-strength plastic shields, which is more safe and reliable to use.

4) The pressure loss and the flow of miststart is low.

2. Symbol

Symbol of AL1500,AL2000,BL2000,BL3000,BL4000 F.R.L combination

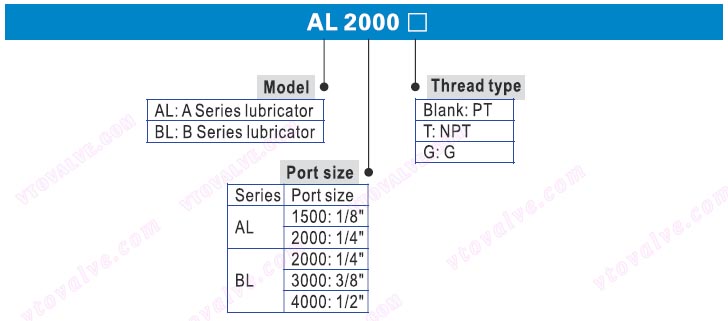

3. Ordering Code

Ordering Code of AL1500,AL2000,BL2000,BL3000,BL4000 F.R.L combination

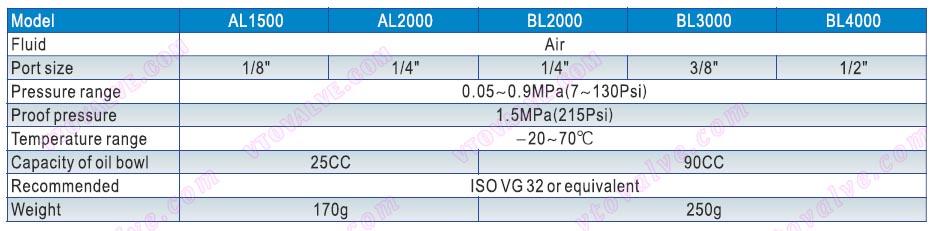

4. Specification

Specification of AL1500,AL2000,BL2000,BL3000,BL4000 F.R.L combination

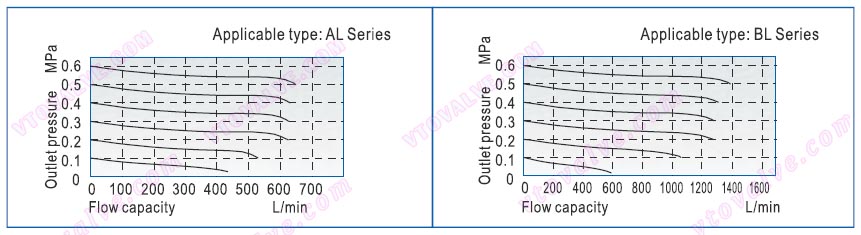

5. Flow Chart

Pressure and Feature of Flow of AL1500,AL2000,BL2000,BL3000,BL4000 F.R.L combination

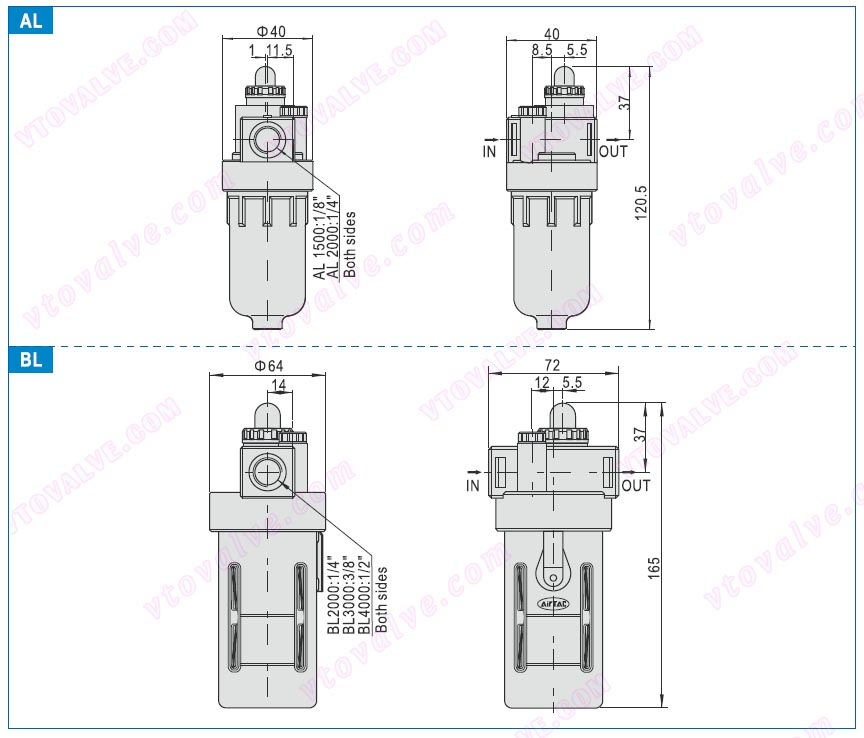

6. Dimensions

Dimensions of AL1500,AL2000,BL2000,BL3000,BL4000 F.R.L combination

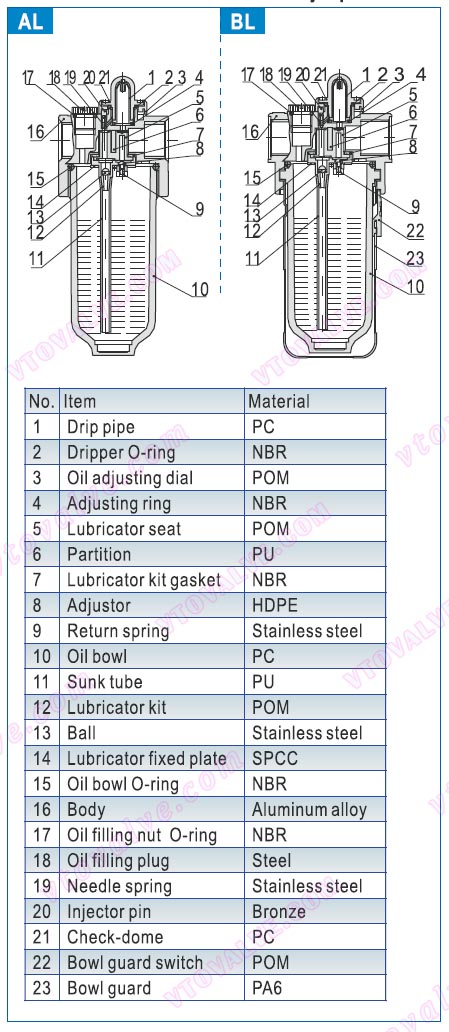

7. Inner Structure and Materials of Main Parts

Inner Structure of AL1500,AL2000,BL2000,BL3000,BL4000 F.R.L combination
