ALS300LM2 Linear Limit Switch Box, ALS300LM2 Series Linear Valve Monitor

ALS300LM2 Linear Limit Switch Box, ALS300LM2 Series Linear Valve Monitor


Product Name

Limit Switch Box, Valve Monitor

Model No.

ALS300LM2

Overview

ALS300LM2 Limit Switch Box (Valve Monitor) is a linear position indication device. Armed with mechanical switch, this device can sense the postion of linear valve (On/Off) for remote PLC or PC indication. This visual indicator on the top of the device can also clearly display the valve position for local detection.

Approved

Certificate for ALS300LM2 Limit Switch Box, ALS300LM2 Valve Monitor

Specifications And Technical Data

Enclosure Die-casting aluminum: O-ring sealed
Coating Dichromate conversion with polyester powder coating
O-rings Buna N
Environment Type 4, 4X, IP67
Area Classification Standard
Fasteners Stainless steel
Shaft Stainless steel Namur
 Conduit Entries Two 1/2" BSPP
Also available with two 1/2" NPT, M20-1.5
 Terminal Strip Contacts 8
 Mounting Bracket MB - 3L (Carbon steel)
Linear Stroke 10~70mm
 Temperature Rating -20℃ ~ 85℃
Sensor: 2 SPDT CROUZET Mechanical Switches
 Model No. M2
Operating Voltage Max: 15A 125~250VAC
 Operating Temp. -25℃ ~ 85℃

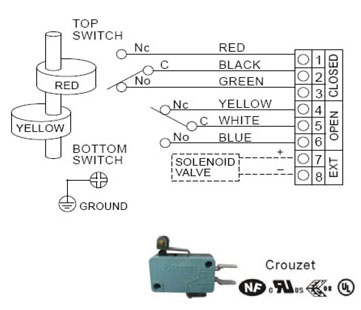

Wiring Diagram

Wiring Diagram for ALS300LM2 Limit Switch Box, ALS300LM2 Valve Monitor

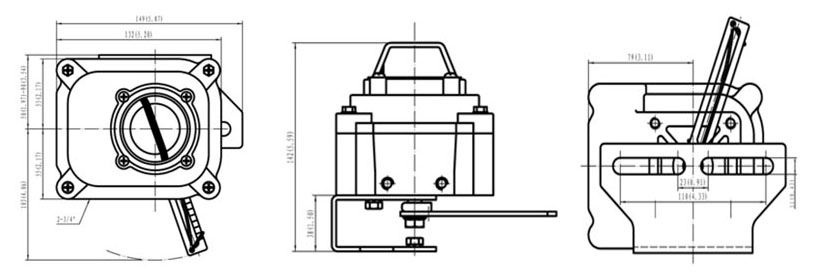

Drawing and Dimension

Dimensions of ALS300LM2 Limit Switch Box, ALS300LM2 Valve Monitor
