AT series rack and pinion type pneumatic actuators

AT series rack and pinion type pneumatic actuators


1. OverView

AT Series Pneumatic Actuator is one kind of new type Rack and Pinion Style pneumatic actuator, which developed by VTO AUTOMATIC CONTROL VALVE CO.,LTD, based on latest technologies of domestic and overseas and optimized by Solidworks 3D Model. It has scientific and reasonable design, compact structure and nice appearance. AT Series Pneumatic Actuator has more reliable technical performance benefit from adopting new process and new type materials. AT Series Pneumatic Actuator completely comply with latest international standard, it is convenient for you to replace similar products provided by other factories, and integrated with various accessories which also conforms to relative international standard.

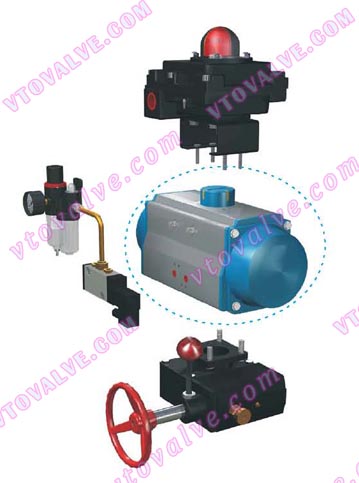

AT pneumatic actuator and accessories

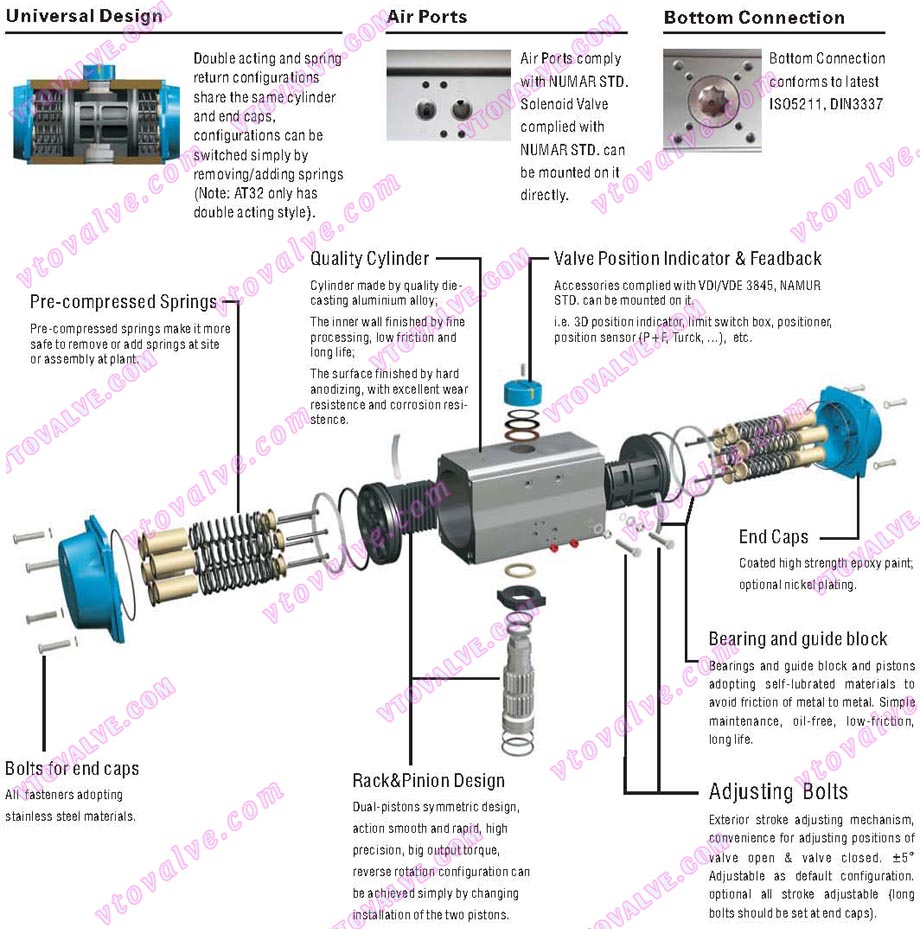

2. Features of AT Series Rack and Pinion Style Pneumatic Actuators

Features of AT Series Rack and Pinion Style Pneumatic Actuators

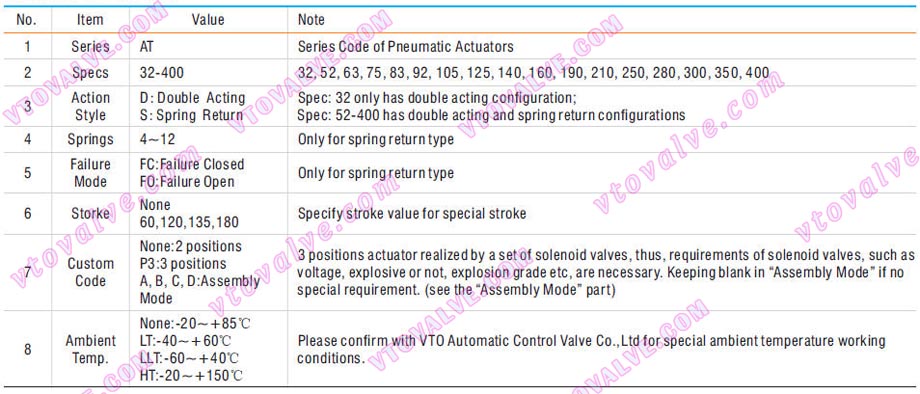

3. How to Order - AT Series Rack and Pinion Style Pneumatic Actuators

Ordering Information of AT Series Rack and Pinion Style Pneumatic Actuators

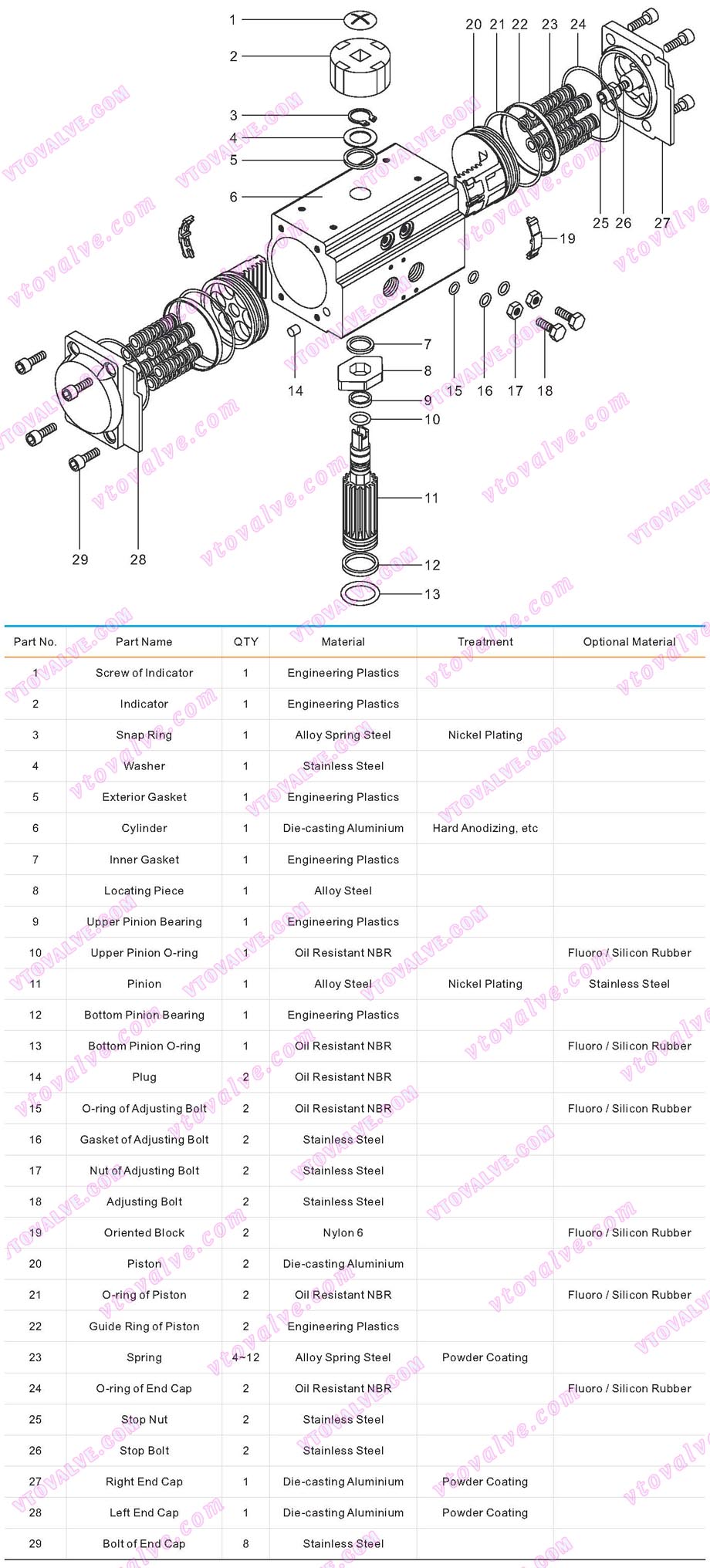

4. Parts and Materials - AT Series Rack and Pinion Style Pneumatic Actuators

Parts and Materials of AT Series Rack and Pinion Style Pneumatic Actuators

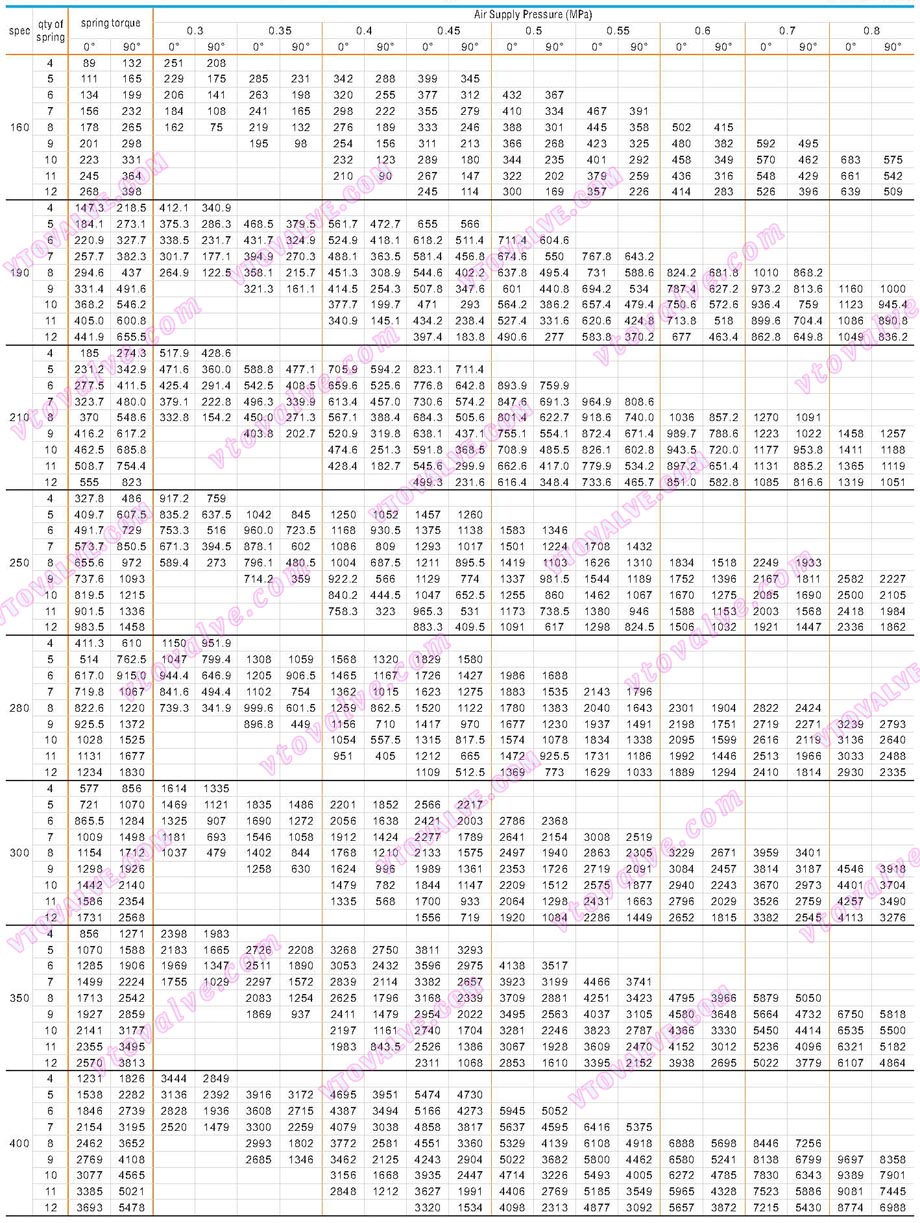

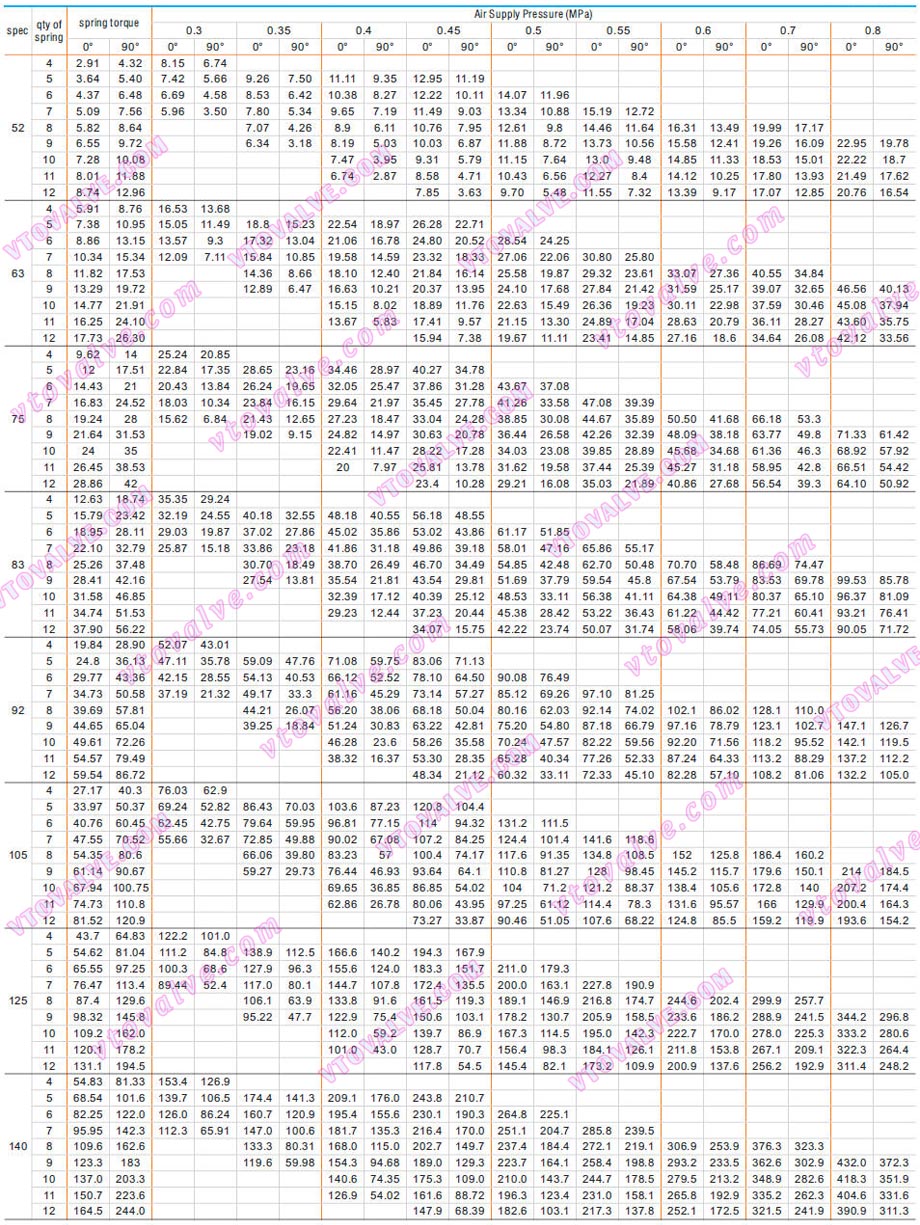

5. Output Torque Chart of Spring Return Type - AT Series Rack and Pinion Style Pneumatic Actuators

Output Torque Chart of Spring Return Type - AT Series Rack and Pinion Style Pneumatic ActuatorsOutput Torque Chart of Spring Return Type - AT Series Rack and Pinion Style Pneumatic Actuators

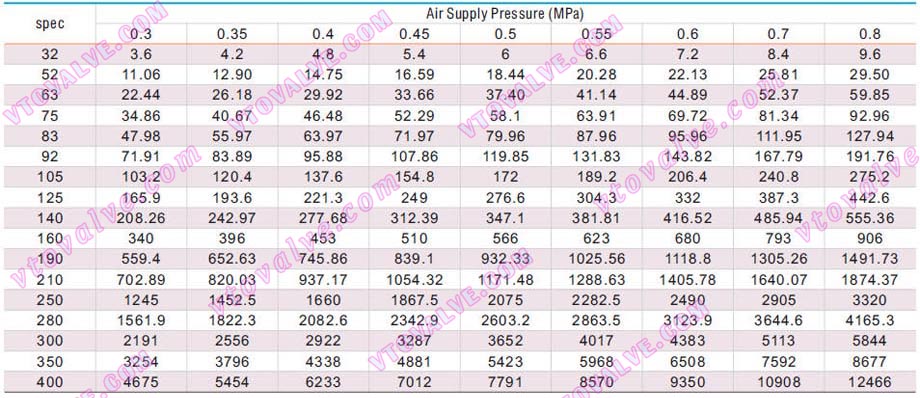

6. Output Torque Chart of Double Acting Type - AT Series Rack and Pinion Style Pneumatic Actuators

Output Torque Chart of Double Acting Type - AT Series Rack and Pinion Style Pneumatic Actuators

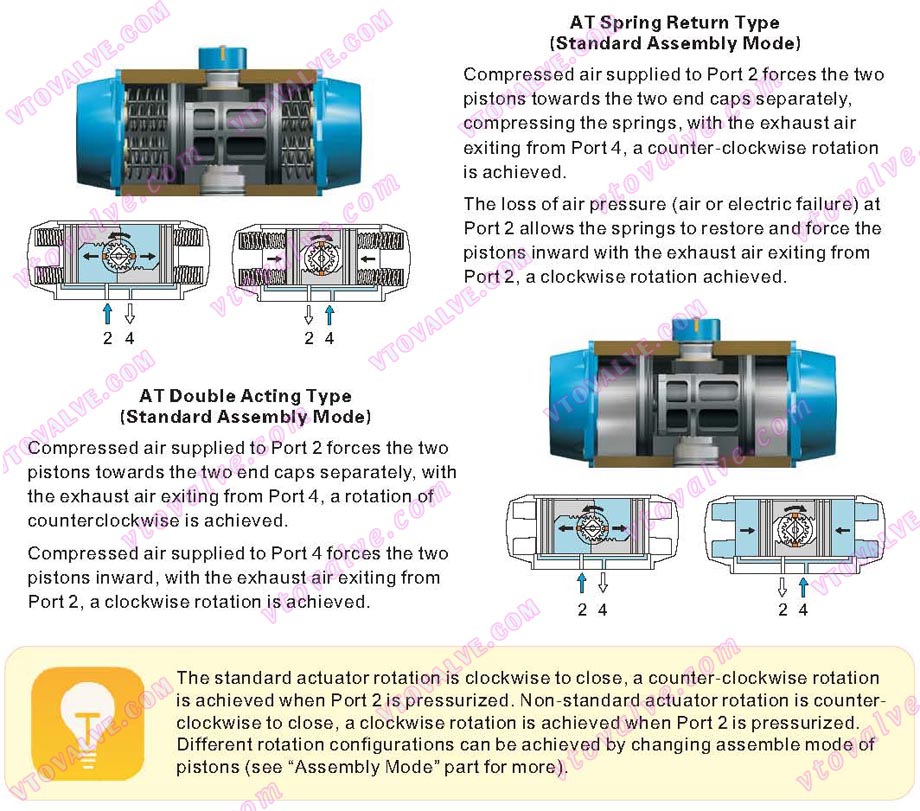

7. Working Principle of AT Series Rack and Pinion Style Pneumatic Actuators

Working Principle of AT Series Rack and Pinion Style Pneumatic Actuators

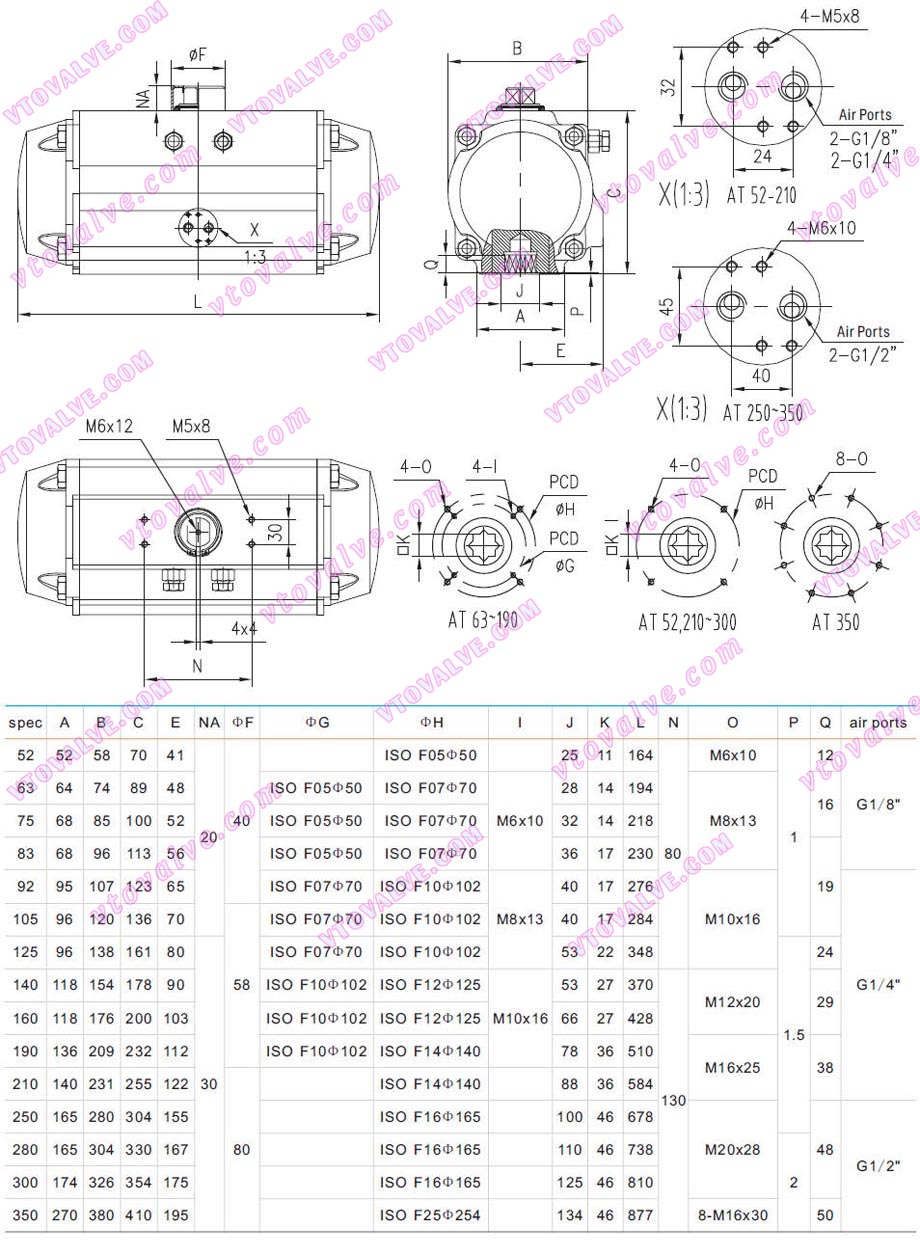

8. Main Dimensions of AT Series Rack and Pinion Style Pneumatic Actuators

Main Dimensions of AT Series Rack and Pinion Style Pneumatic Actuators

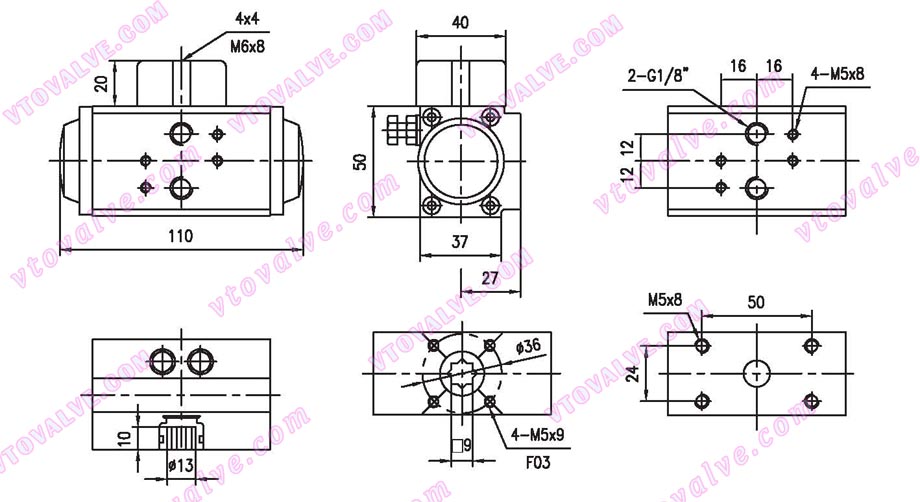

• Main Dimensions of AT32D

Main Dimensions of AT32D

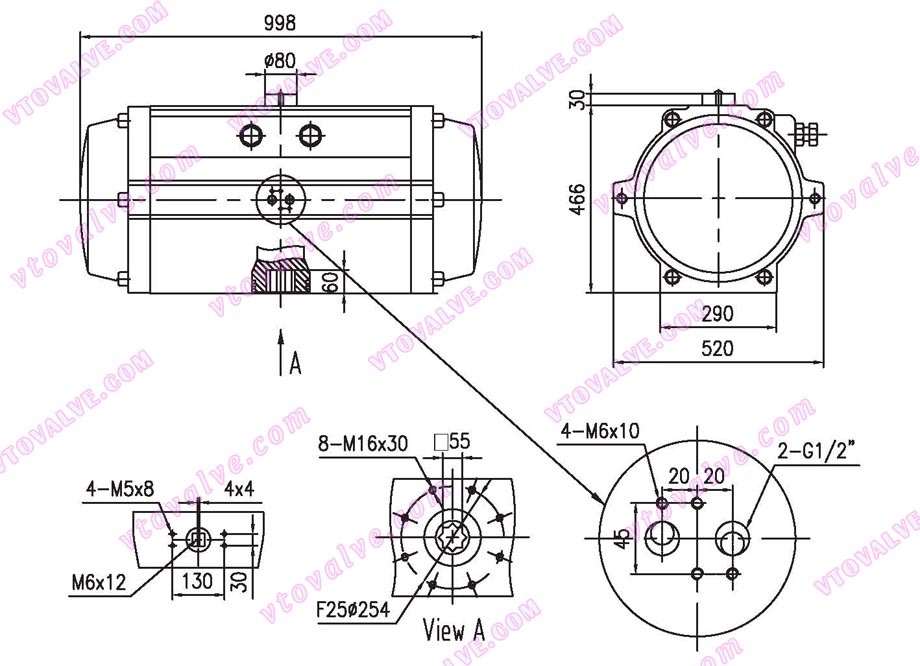

• Main Dimensions of AT400D/AT400S

Main Dimensions of AT32D
