2PC Female Threaded Ball Valves

2PC Female Threaded Ball Valves


» 2PC Female Threaded Ball Valves

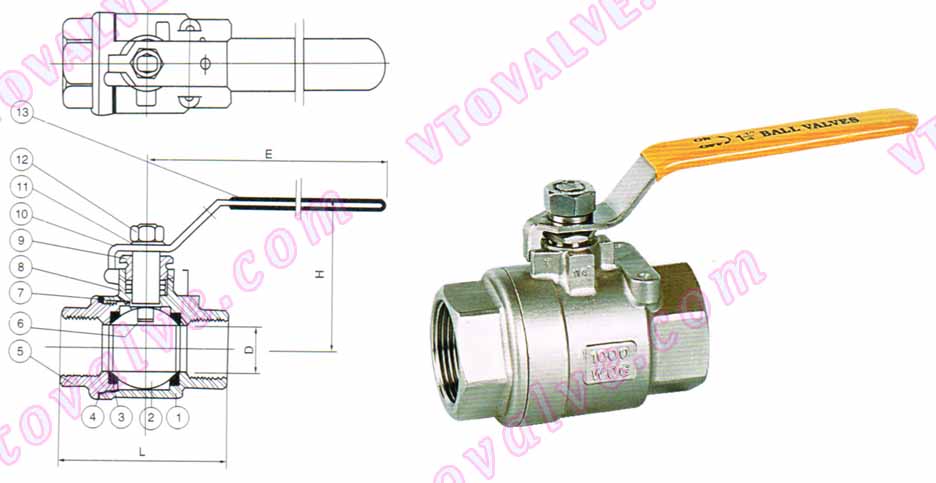

Drawing for 2PC Female Threaded Ball Valves

» Specifications

Working Pressure: 1000PSI
Working Temperature: -20~232℃~350℃
Suitable Medium: Water, Oils, Gas, and Some Corrosive Liquid
Thread Type: G, NPT, BSPT, BSP, DIN259/2999

» Optional

Butt-welding (BW)
Socket-welding (SW)
Bracket with ISO Flange

» Main Parts and Materials

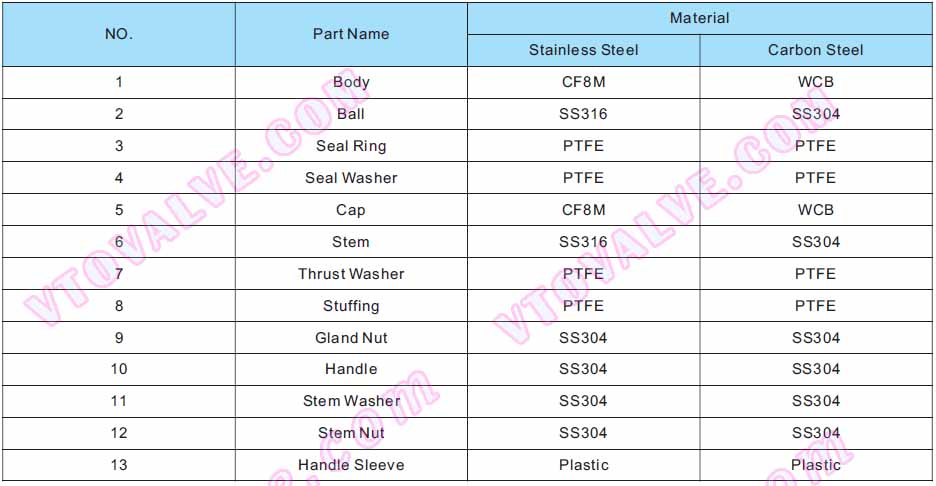

Main Parts and Materials for 2PC Female Threaded Ball Valves

» Main Dimensions

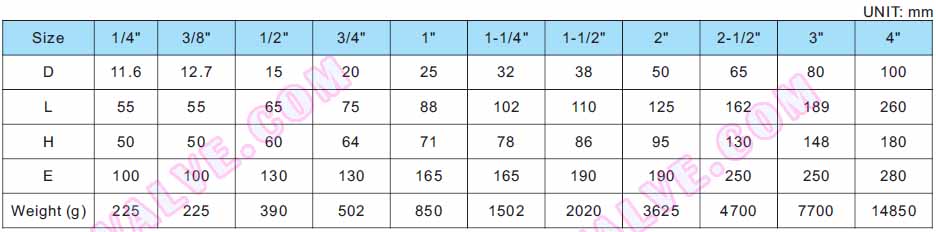

Main Dimensions for 2PC Female Threaded Ball Valves
