3PC Female Threaded Ball Valves

3PC Female Threaded Ball Valves


» 3PC Female Threaded Ball Valves

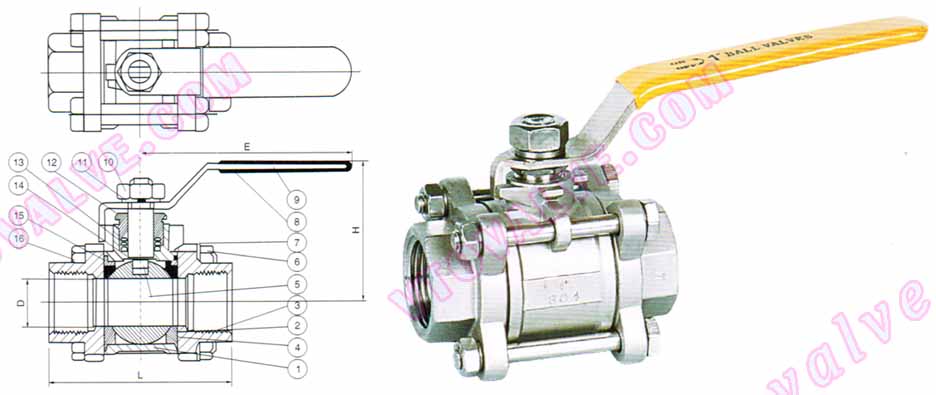

Drawing for 3PC Female Threaded Ball Valves

» Specifications

Working Pressure: 1000PSI
Working Temperature: -20~232℃~350℃
Suitable Medium: Water, Oils, Gas, and Some Corrosive Liquid
Thread Type: G, NPT, BSPT, BSP, DIN259/2999

» Main Parts and Materials

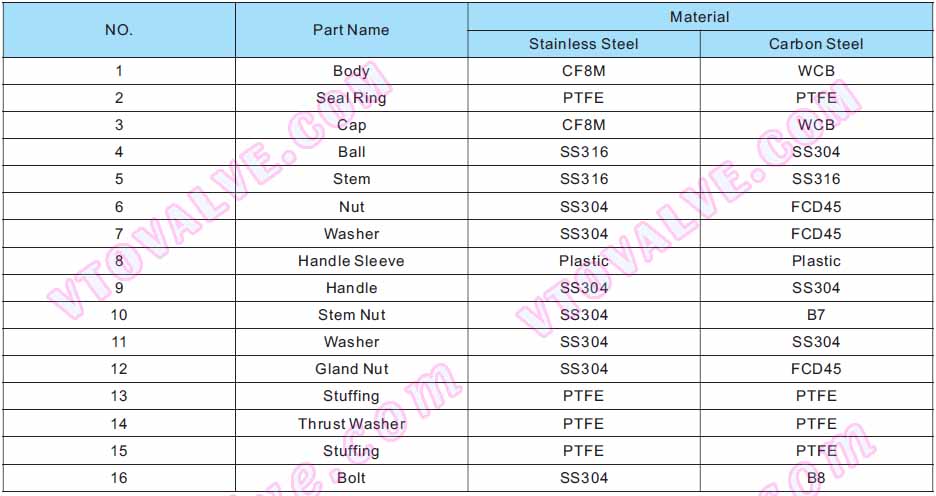

Main Parts and Materials for 3PC Female Threaded Ball Valves

» Main Dimensions

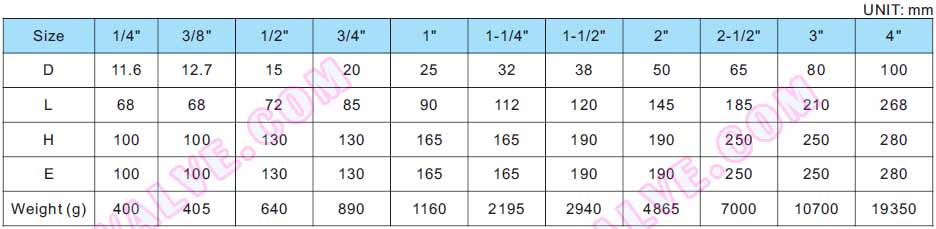

Main Dimensions for 3PC Female Threaded Ball Valves
