2PC Soft Seal Flange Ball Valves of GB Standard

2PC Soft Seal Flange Ball Valves of GB Standard


» 2PC Soft Seal Float Ball Valves of GB Standard

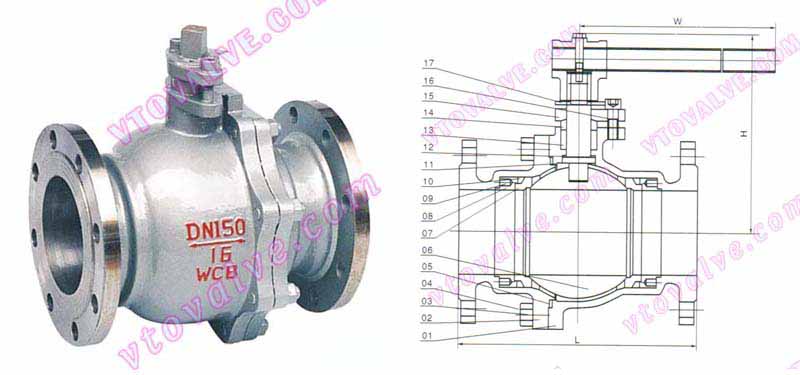

Drawing for 2PC Soft Seal Float Ball Valves of GB Standard

» Specifications

Applicable Medium: water, gas, oils, natural gas, and corrosive mediums as acids, alkalis, etc.
Applicable Temperature: -196~350℃(-320.8~662°F)
Driving Mode: manual, pneumatic, hydraulic, electric, etc.
Nominal Diameter: DN15~250mm 1/2"~10"

» Main Parts and Materials,  Technical Specification,  Test Pressure

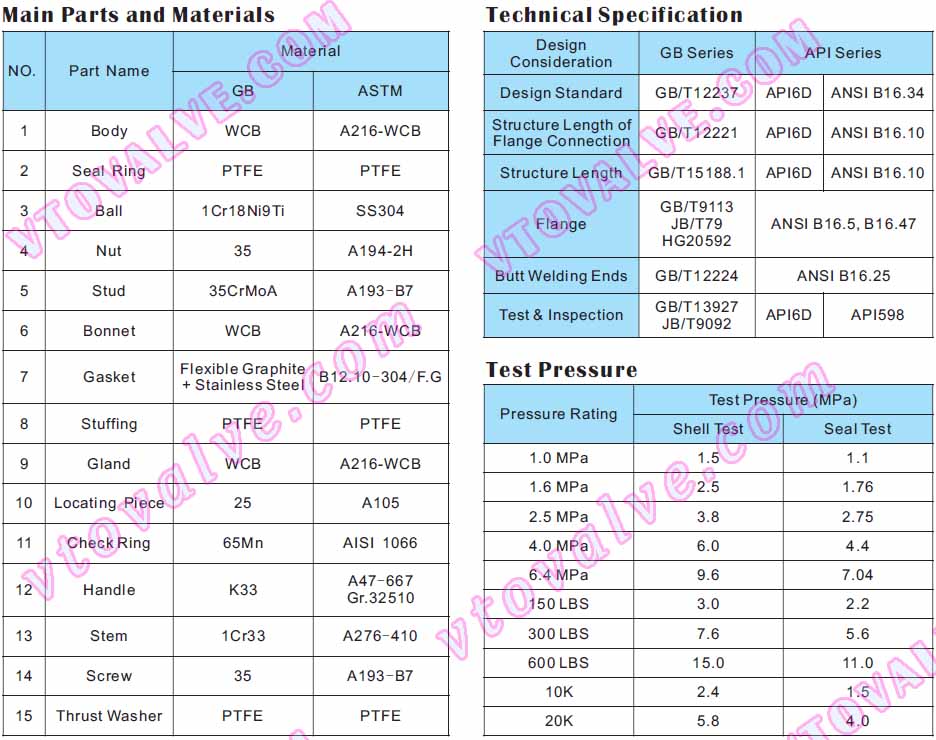

Main Parts and Materials,Technical Specification,Test Pressure for 2PC Soft Seal Float Ball Valves of GB Standard

» Main Connection Dimensions and Weights

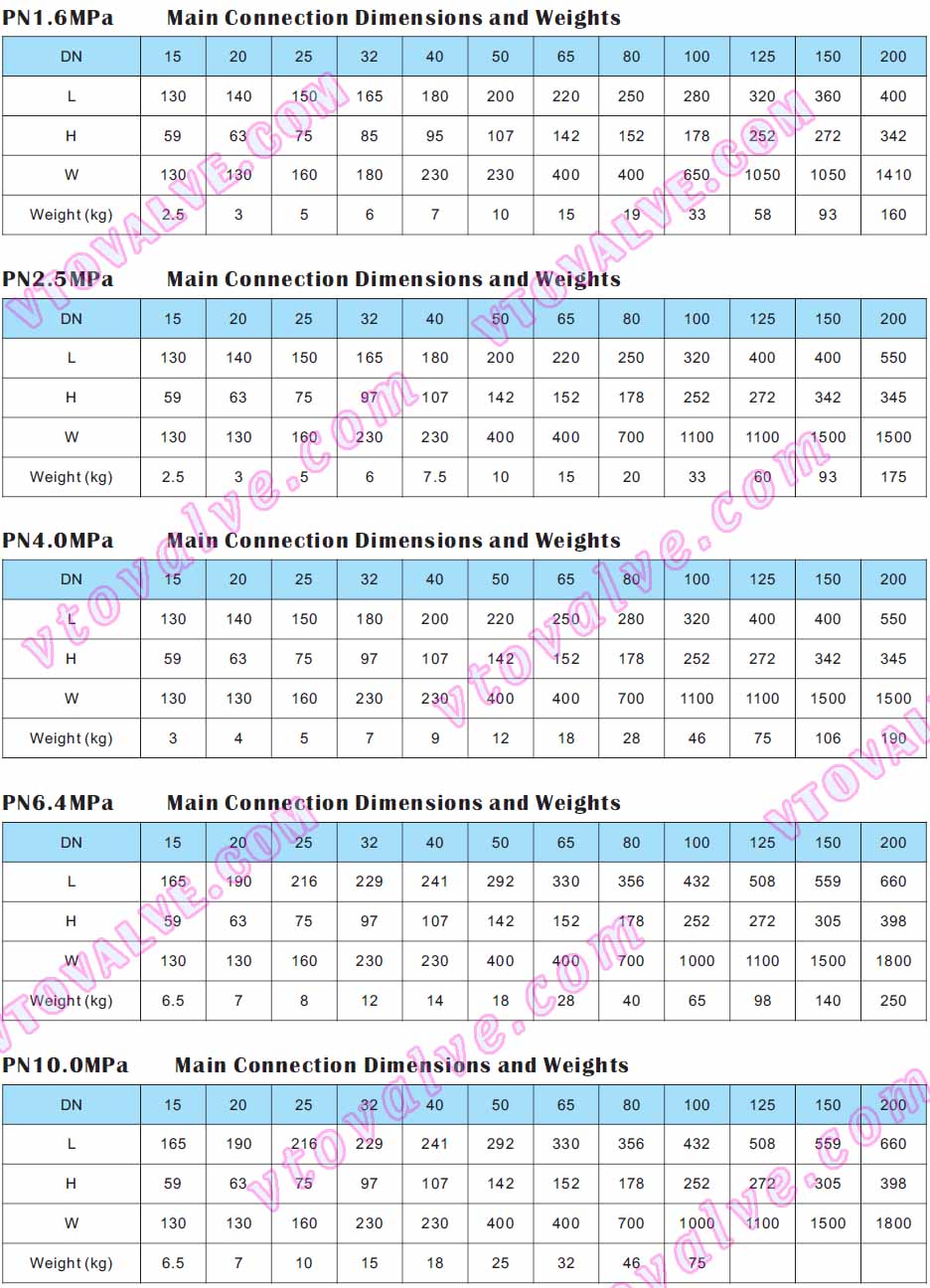

Main Connection Dimensions and Weights for 2PC Soft Seal Float Ball Valves of GB Standard
