YTC YT-3301 Positioner (YOUNG TECH)

YTC YT-3301 Positioner (YOUNG TECH)


1. OverView of YTC YT-3301 Positioner

YT-3301 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA being delivered from controller.
It has the following features:
   • Separated feedback module
   • Auto/Manual switch
   • HART communication
   • LCD display
   • Auto calibration
   • PID control
   • 4 buttons for local control
   • Feedback signal

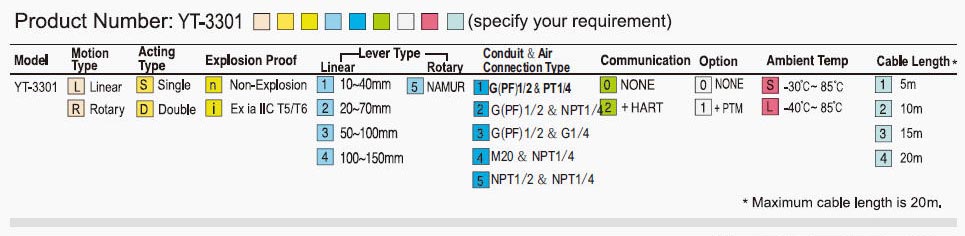

2. Product Model No. for YTC YT-3301 Positioner

Product Model No. for YTC YT-3301 Positioner

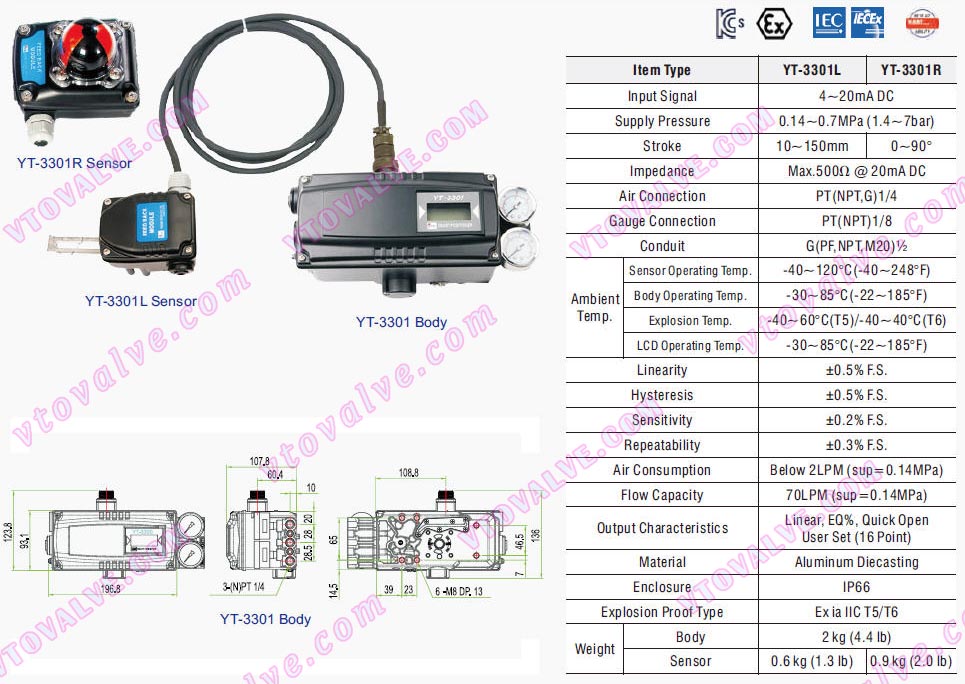

3. Technical Data of YTC YT-3301 Positioner

Technical Data of YTC YT-3301 Positioner

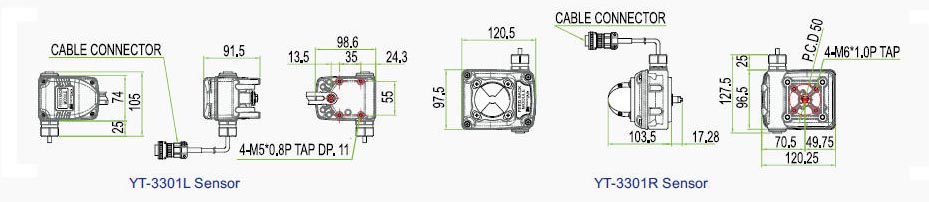

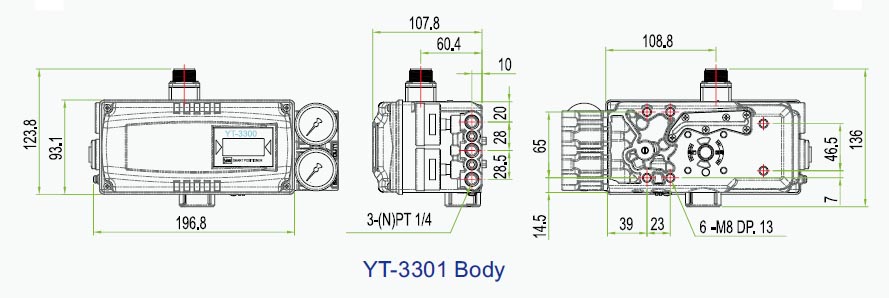

4. Drawing of YTC YT-3301 Positioner

Drawing of YTC YT-3301 PositionerDrawing of YTC YT-3301 Positioner
